ferag.spiral

The flexible and reliable spiral conveyor

ferag.spiral provides an effortless and efficient solution for overcoming height differences in your existing operational environment.

Request offer Brochure download

Modularly expandable to up to 12 spirals – tailored to the required height. The illustrated images are examples of possible configurations.

The Essentials at a Glance:

Conveyor Dimensions
(Ratio of package sizes max./min.
in consultation with engineering)		 (mm) max. 600x400x400
Permissible load
 (kg/m) max. 20
(kg/Plate) max. 5
Conveying speed
 (m/s) 0.25 – 1
(m/min) 15 – 60
Conveying heights min/max
(Permissible load reduced from
a height of 8.2 m to 12.2 m)		 (Height in m) 2.2 – 12.2
Noise emission 75 dB directly at the drive
72 dB beside the conveyor line
Food compatibility In primary packaging for dry goods
In secondary packaging for all goods

Price Calculator

Number of turns:

Non-binding Price (excl. VAT)

€

Awards

Product of the Year 2025

Ferag Solutions’ ferag.spiral conveyor has been named “Product of the Year 2025” in the Conveying and Lifting Technology category by materialfluss magazine. This innovative, efficient, and compact solution is the flagship of the new ferag.modules portfolio, highlighting Ferag’s commitment to engineering excellence.

Here’s what makes it stand out:

Efficient height transfer:

The ferag.spiral can be expanded to up to 12 spirals, reaching impressive heights of up to 12.2 meters, making it ideal for multi-story facilities and complex logistics systems.

Four exits for maximum flexibility:

With four standardized exit options, ferag.spiral offers flexible connectivity to your existing infrastructure or required facility layout without needing additional adjustments.

Customizable and easy to configure:

Thanks to its modular design, it integrates seamlessly into existing infrastructures and systems, allowing easy adaptation to a variety of layouts and requirements.

High conveying capacity with minimal energy consumption:

Rolling support enables energy-efficient, low-noise, and low-wear conveying. For a long-lasting system.

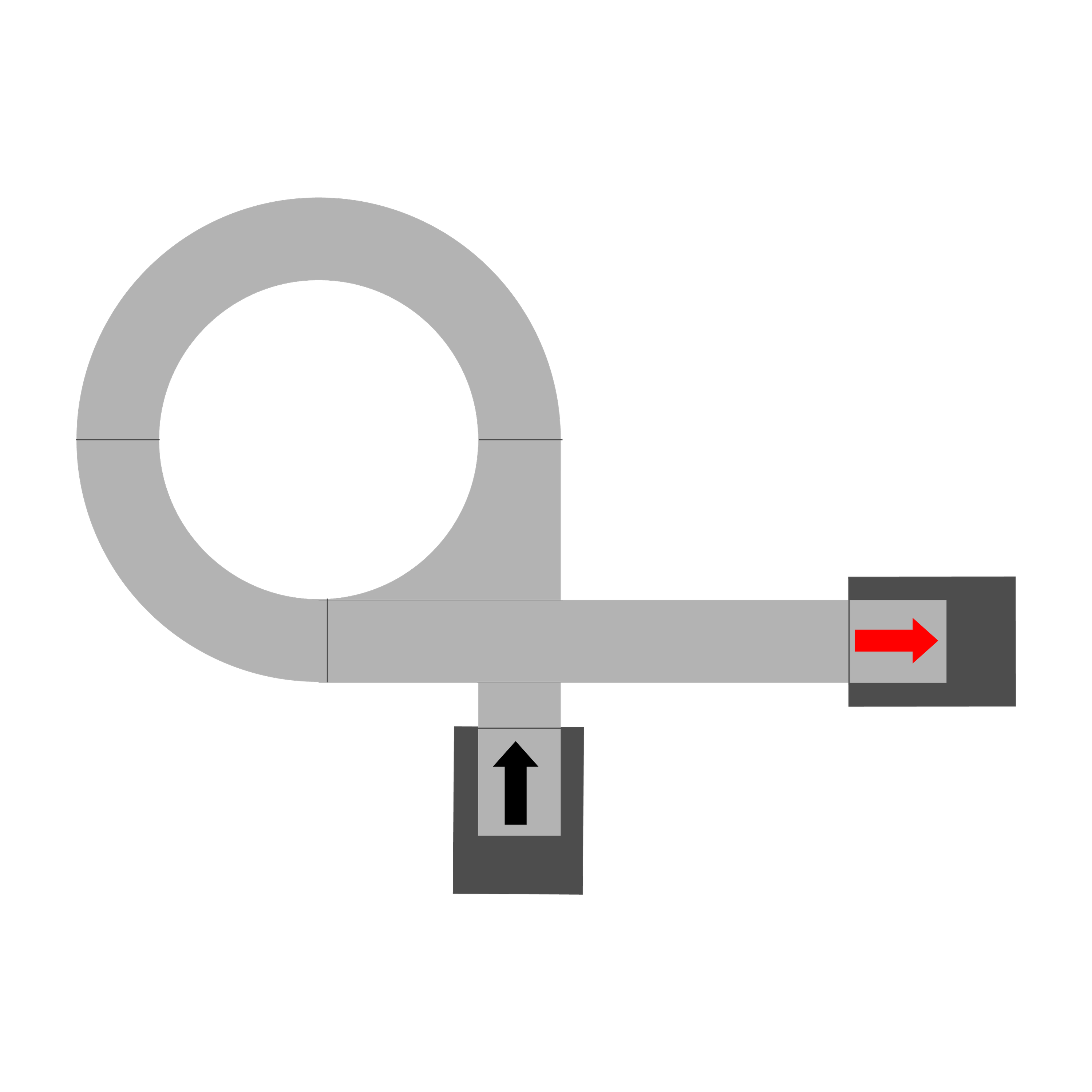

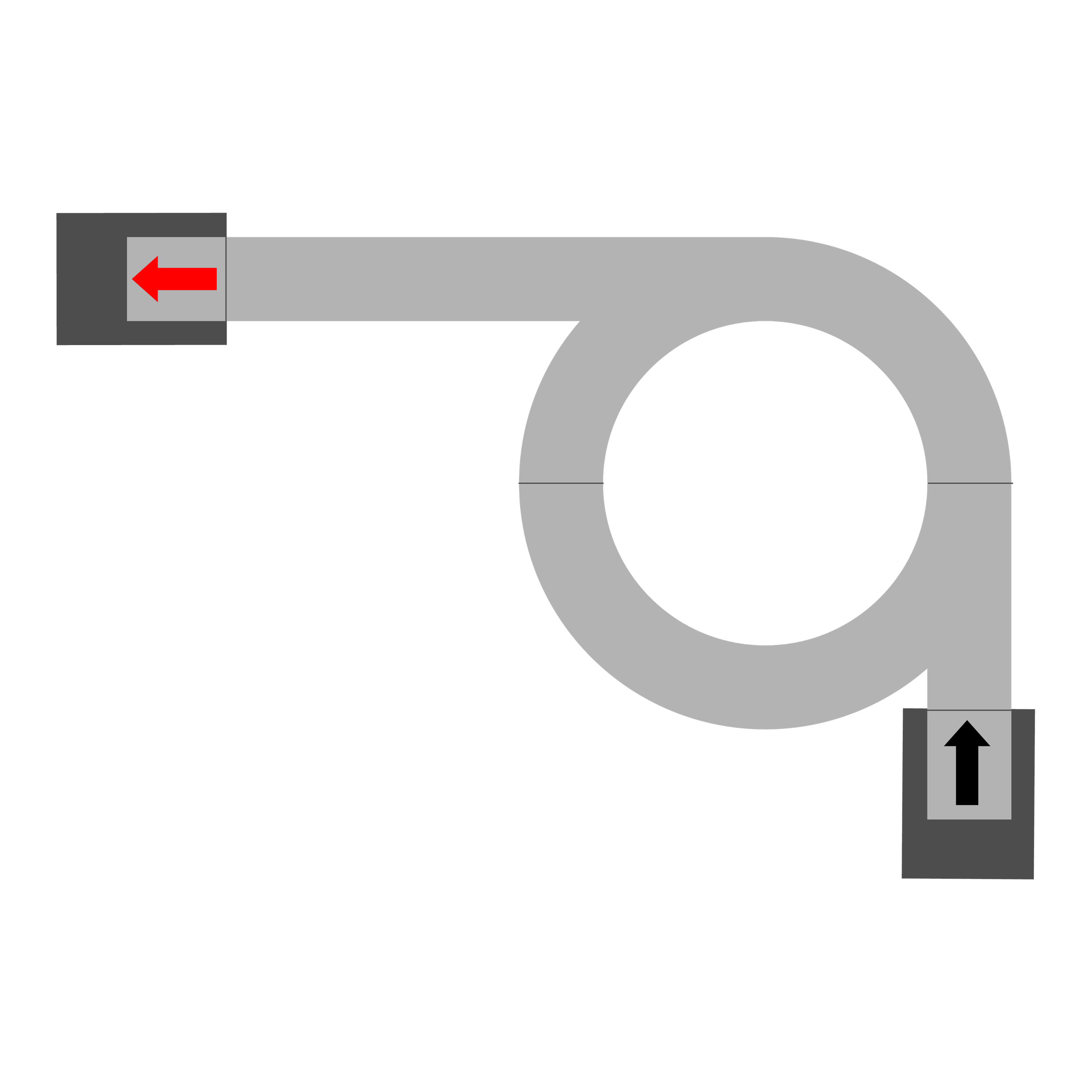

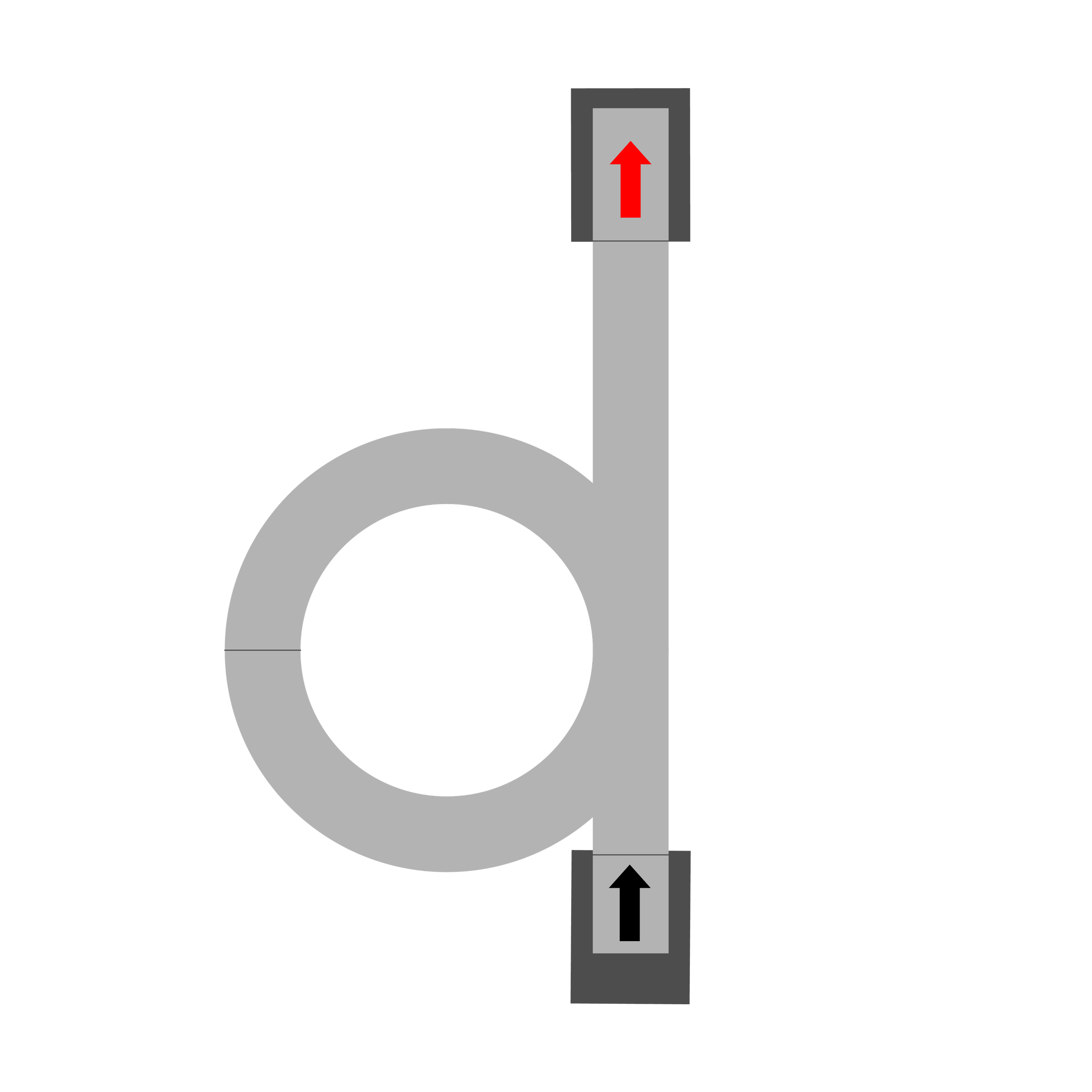

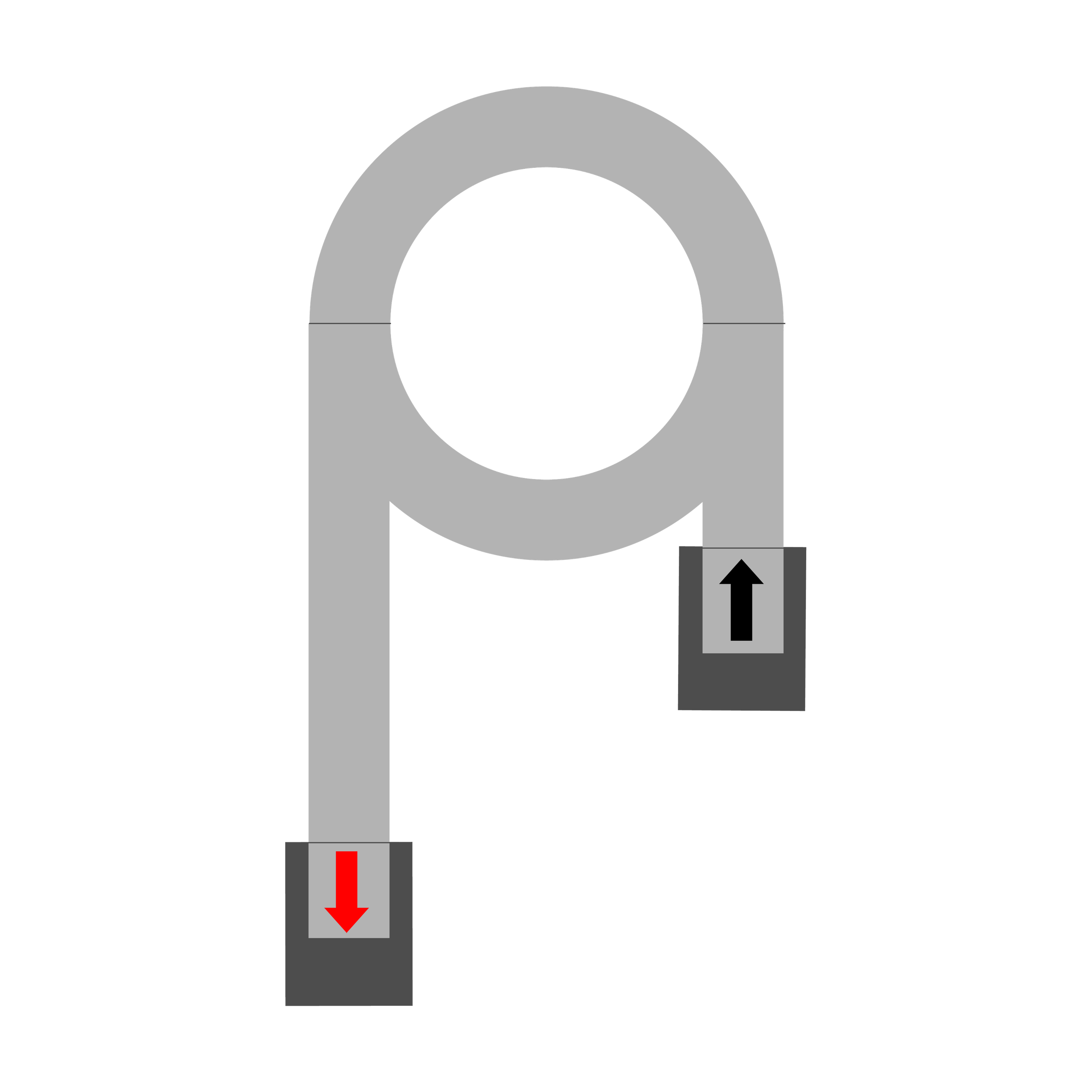

Four standardized output options – for versatile applications.

0°

90°

180°

270°

Request a non-binding offer for your ferag.spiral

Choose from four exit variants and configure your spiral conveyor according to your specific requirements. Please provide the key details in the form. Our team will process your request and send you a non-binding offer promptly.
